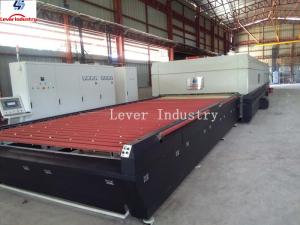

TF-SERIES FLAT GLASS TEMPERING FURNACE
Video Link:
https://youtu.be/tfytuOlcxP4
| Model | Max. Loading Area | Min.Glass Size | Thickness | Capacity |
| (mm) | (mm) | (mm) | (Batch/Hour) |
| LV-TF1525 | 1500 x 2500 | 150 x 280 | 3～19 | 15～17 (5mmfor example) |
| LV-TF2436 | 2440 x 3660 | 150 x 280 | 4～19 | 15～17 (5mmfor example) |
| LV-TF2442 | 2440 x 4200 | 150 x 280 | 4～19 | 15～17 (5mmfor example) |
| LV-TF2450 | 2440 x 5000 | 150 x 280 | 4～19 | 15～17 (5mmfor example) |
| LV-TF3060 | 3000 x 6000 | 150 x 320 | 5～19 | 15～17 (5mmfor example) |
| LV-TF3380 | 3300 x 8000 | 150 x 320 | 5～19 | 15～17 (5mmfor example) |
1. Machine Application:
For producing flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, garden fence, elevator, furniture, etc.
2. Main Technical Features:
2.1. Helix matrix structure for heating oven, which can control the temperature of each area independently.
2.2. Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.
2.3. Fault diagnosis system for the heating elements.
2.4. Advanced & specially designed high-temperature convection fans shall be applied in convection system to eliminate electro-magnetic vibration. And there is no need the water cooling system. Also, it is very easy to make the maintenance and repairment.
2.5. For the force convection fans, If power off, there is small generator providing power to convection fan which could avoid any damage because of high temperature
2.6. PID temperature control,
2.7. Preventive function for the wrong operation
2.8. Synchronous and asynchronous running of each section
2.9. Power monitoring function
2.10. Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.
2.11. Standard for processed products: GB15763.5, GB9656, EN12150-1:2000, ECER-43, ANSIZ97.1, etc.
