Bi-direction Single & Double Curvature Bending Glass Tempering Furnace for auto side and back lites

Name: Bidirection Single amp Double Curvature Bending Glass Tempering Furnace for auto side and back lites
Brand: Lever
Price: 300 USD

Brand Name : Lever

Model Number : LV-TB-V-L

Certification : CE

Place of Origin : China

MOQ : 1 SET

Payment Terms : T/T,or L/C

Delivery Time : 90-120days

Packaging Details : Container or wooden case

Price : USD300,000

Supply Ability : 100 SETS

Automotive sidelites glass : Automotive backlites glass

automobile side door glass : automobile backscreen

auto glass : back windshield glass

Products name : Glass Tempering Furnace

Product Name : Glass Toughening Machine

Car Glass tempering : side lites and back lites

Voltage : Customerized,380V 50HZ /60HZ

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training

Dimension(l*w*h) : according to customer requirement

Power(w) : Different by models,500KVA

Warranty : 1 year,life time services.,one year,12 Monthsa quality guarantee

Product name : High performance temperd glass making machine furnace,Glass Tempering Furnace,Horizontal Tempering Machine / LandGlass Glass Furnace For Sale,Flat price toughened thin glass tempering machine for sale

Color : Customers' Request,Customisation,White

Usage : Making Tempered Glass,Tempering low-e,doors and windows,Make Toughened Glass,flat and patterned glass

Name : Bending Glass Tempering Furnace,Flat and bent glass tempering furnace,glass tempered machine

Tempering type : Bent Tempering Furnace

Type : Horizontal,automatic,Electric,glass tempered furnace

Heating method : radiation,JetConvection

Max glass size : 2000*3200mm

Contact Now

Bi-direction Single & Double Curvature Bending Glass Tempering Furnace for auto side and back lites

1. Machine Application

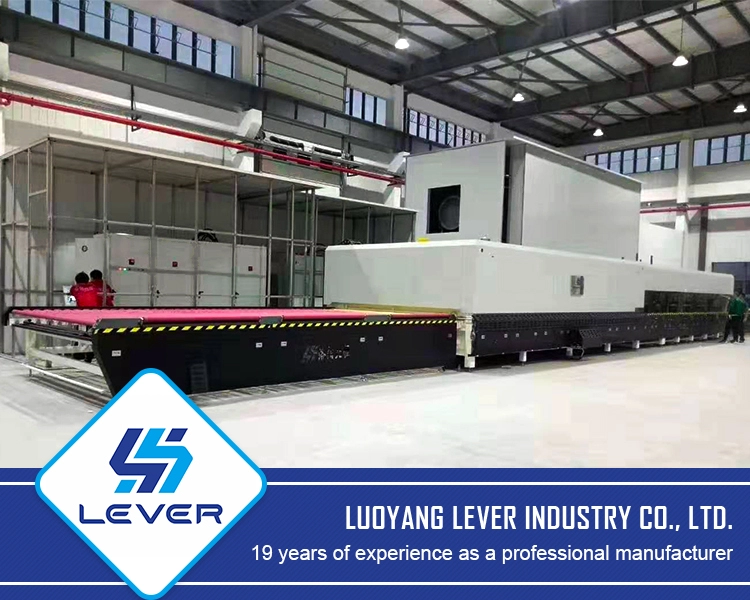

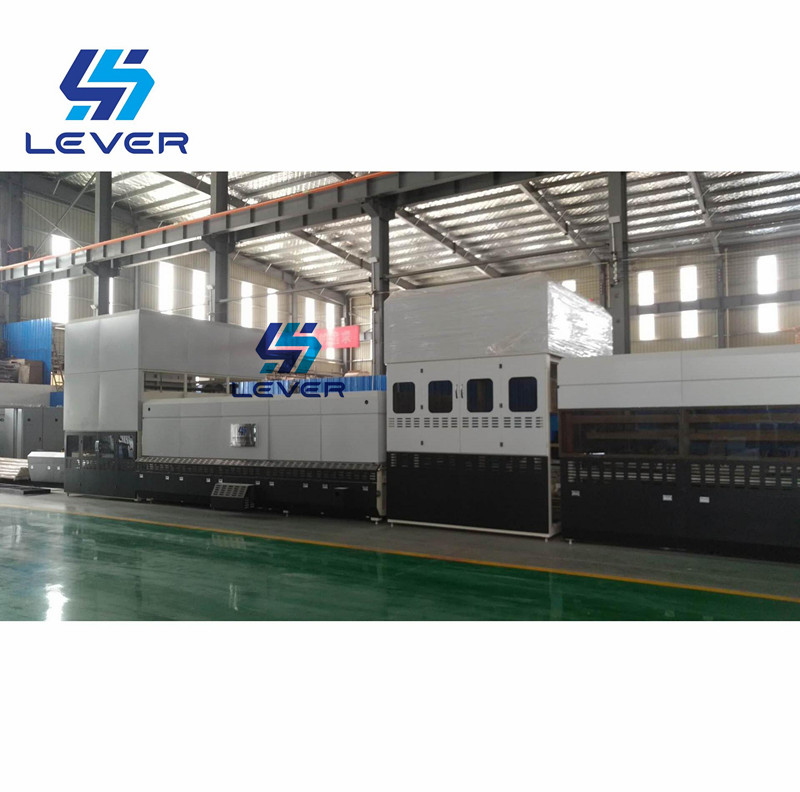

LV-TB-V-L Series Bi-direction Single & Double Curvature Bending Glass Tempering Machine is a special plant used to produce the bent tempered glass for automobile side lite and back lite, also for trucks, furniture, etc. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

2. Supply Scope:

Loading Section
Single Bent Glass tempering & cooling section
Heating section
Double bent Forming section with mould
Quenching section
Transmission section
Cooling section
Unloading section
Blower system
Electrical & control system

3. Popular machine size:

Model	Max. Loading Area	Min.Glass Size	Thickness	Max.Depth
Model	(mm)	(mm)	(mm)	(mm)
LV-TB1608V-08L	⌒1600 x ⌒800	⌒200 x ⌒300	3.5～6	150
LV-TB1810V-10L	⌒1800 x ⌒1000	⌒200 x ⌒300	4～6	150
LV-TB2012V-12L	⌒2000 x ⌒1200	⌒200 x ⌒300	5～6	150
LV-TB2212V-12L	⌒2200 x ⌒1200	⌒200 x ⌒300	5～6	300

4. Machine Main Features:

In the bending forming, for transmission of pressing mould, support mould and rollers, we use servo motors & servo controllers.
In quenching section, for transmission of mould carrier, we use servo motors & servo controllers.
Equipped with heating & insulating system in forming section, which could keep temperature of the forming section so that the glass is formed in high temperature.
Easy-making and cheap moulds
Easy & quick moulds changing-time
Smaller roller distance in heating oven which guarantee the high quality
Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.
The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.
Ceramic roller: World-famous brand
Ceramic roller driving adopts seamless round belts.
Fault diagnosis system for the heating elements.
