DTFB-SERIES Double Heating Chamber FLAT & Bend GLASS TEMPERING FURNACE
| Model |
Max. Loading Area |
Min.Glass Size |
Thickness |
Capacity |
| (mm) |
(mm) |
(mm) |
(Batch/Hour) |
| LV-DTFB2442-15L |
2440 x 4200 |
150 x 280 |
4～19 |
30～40 (5mmfor example) |
| LV-DTFB2450-18L |
2440 x 5000 |
150 x 280 |
4～19 |
30～40 (5mmfor example) |
| LV-DTFB3060-20L |
3000 x 6000 |
150 x 320 |
5～19 |
30～40 (5mmfor example) |
1. Machine Application:
For producing flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, garden fence, elevator, furniture, etc.
2. Main Technical Features:
►. Helix matrix structure for heating oven, which can control the temperature of each area independently.
►. Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.
►. Fault diagnosis system for the heating elements.
►. Advanced & specially designed high-temperature convection fans shall be applied in convection system to eliminate electro-magnetic vibration. And there is no need the water cooling system. Also, it is very easy to make the maintenance and repairment.
►. For the force convection fans, If power off, there is small generator providing power to convection fan which could avoid any damage because of high temperature
►. PID temperature control,
►. Preventive function for the wrong operation
►. Synchronous and asynchronous running of each section
►. Power monitoring function
►. Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.
Product Tags:
|
|

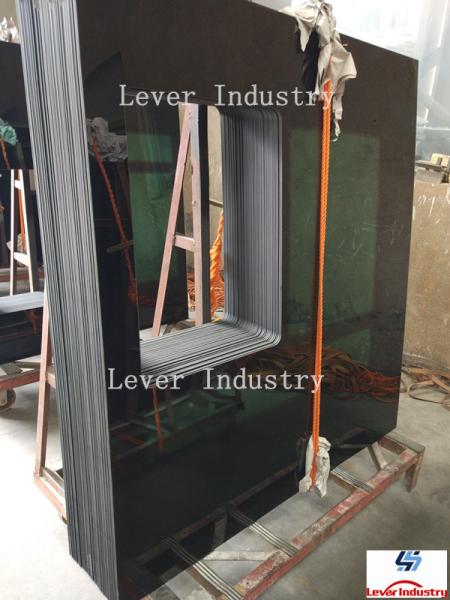

LV-TB-L Series Bending Glass Toughening Furnace , Glass Tempering Furnace for Automobile Sidelites glass Images
|
